Switch-Pros RCR-Force® 12 Power Management System | 12-Switch Universal UTV & Off-Road Switch Panel

Lead Time: Approximately 1 Week

Take complete control of your off-road accessories with the Switch-Pros RCR-Force® 12 Power Management System. Built for UTVs, Side-by-Sides, Jeeps, trucks, overland vehicles, race cars, rock crawlers, and marine applications, the RCR-Force 12 combines a sleek 12-switch touch panel with an intelligent power module to eliminate bulky relay boxes and simplify your vehicle's electrical system.

Whether you're powering LED light bars, pod lights, rock lights, whip lights, chase lights, air compressors, cooling fans, radios, GPS units, winches, sound systems, dome lights, dust lights, or other 12-volt accessories, the RCR-Force 12 gives you complete programmable control through one waterproof, Bluetooth-enabled switch panel.

Proudly Made in the USA, the RCR-Force® 12 features a 150-amp power module with 17 programmable outputs, allowing you to control more accessories than traditional switch panels while maintaining a clean, professional installation.

Configure every circuit, monitor battery voltage, customize switch behavior, and troubleshoot your system directly from the free Switch-Pros App, available for both Apple iOS and Android devices.

Why Choose the Switch-Pros RCR-Force® 12?

The RCR-Force® 12 is designed for serious off-road enthusiasts who demand maximum control over complex electrical systems. Its 12-switch interface provides quick access to your most-used accessories while the intelligent power module supports up to 17 programmable outputs, making it ideal for highly equipped UTVs, overland builds, race vehicles, and custom trucks.

Perfect for:

• Can-Am Maverick X3
• Polaris RZR
• Polaris General
• Honda Talon
• Kawasaki Teryx KRX
• Yamaha YXZ
• Jeep Wrangler & Gladiator
• Toyota Tacoma
• Ford Bronco
• Race Vehicles
• Rock Crawlers
• Overland Builds
• Boats
• Service Trucks

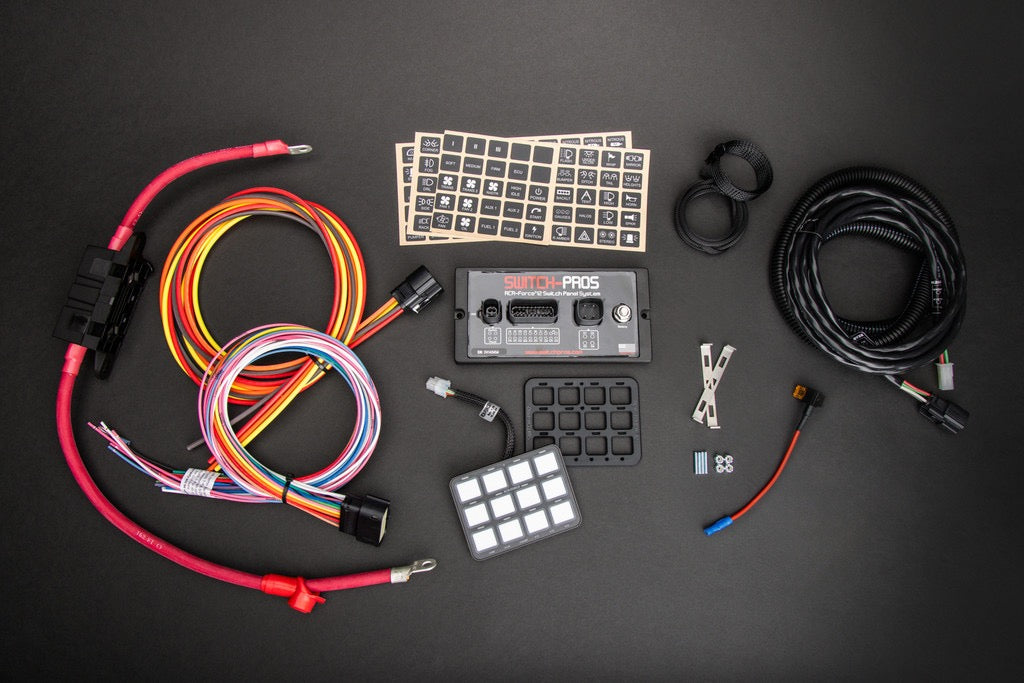

What's Included

• Switch-Pros RCR-Force® 12 Switch Panel

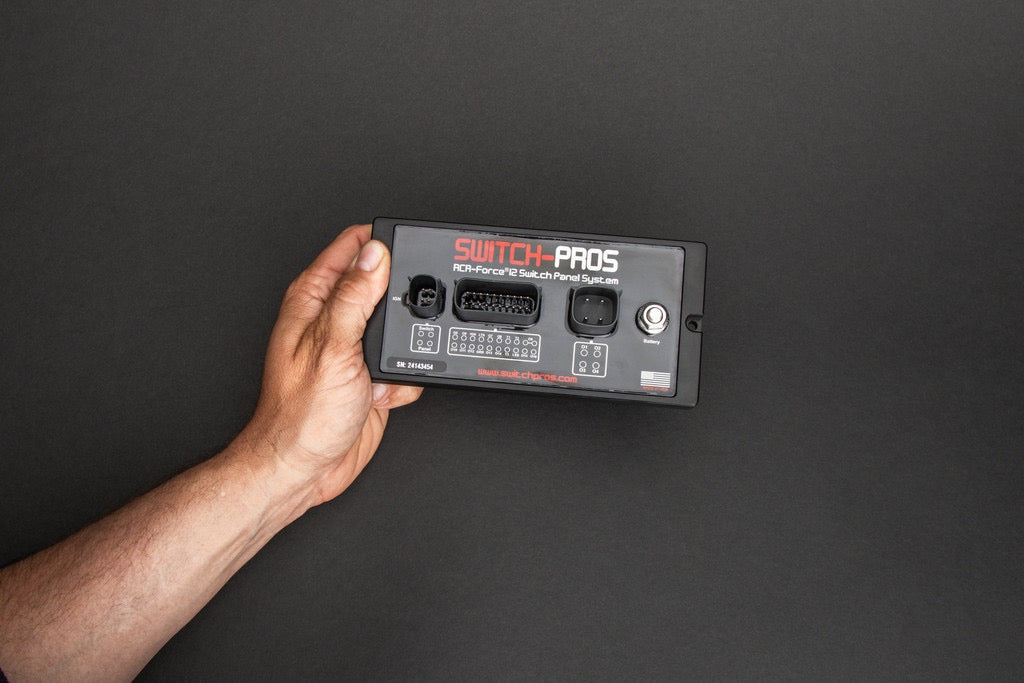

• Intelligent 150A Power Module
• RCR-Touch® Snap-On Switch Cover
• 11-Foot Communication Cable
• Heavy-Duty Power Cable with 150A Inline Fuse
• 125 User-Selectable Legends
• Installation Brackets and Hardware
• 20-Pin Color-Coded Output Harness
• 4-Pin High Inrush Output Harness
• Detailed Installation Guide

Premium Features

Bluetooth® Smartphone Programming

Wire it once, then customize everything from your phone using the free Switch-Pros App for iOS and Android.

RGB Backlit Touch Panel

Personalize the switch panel with fully adjustable RGB backlighting for improved visibility during day or night driving.

Real-Time Battery Voltage Monitoring

Keep track of system voltage directly from the mobile app to help protect your electrical system.

LED Diagnostic Indicators

Six programmable LED status indicators make installation, diagnostics, and troubleshooting quick and easy.

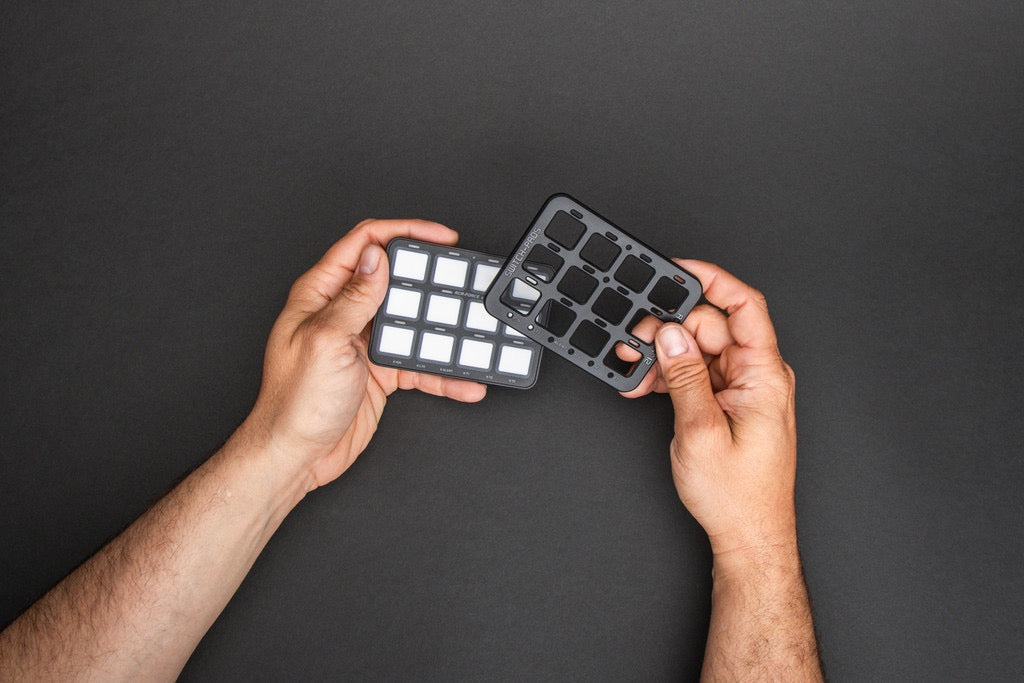

RCR-Touch® Glove-Friendly Interface

The patented RCR-Touch® switch cover allows fast, accurate switch selection even while wearing gloves or driving through rough terrain.

Specifications

• 150 Amp Total System Capacity
• 17 Programmable Outputs
• Four 35-Amp Outputs
• One 30-Amp High Inrush Output
• Eleven 15-Amp Outputs (combinable for higher current loads)
• One 2-Amp Low Side Driver Output
• Adjustable Overcurrent Protection
• Switch Panel Dimensions:
  • 4" x 3" x 0.375"
• Power Module Dimensions:
  • 7" x 3.5" x 0.5"
• IP67 Waterproof Rating
• Operating Temperature:
  • -40°C to 125°C

Advanced Programming Features

Customize your electrical system with powerful programmable functions:

• Adjustable RGB Backlight Dimming with Memory
• Master Mode controls up to 11 accessories simultaneously
• On-On-Off Logic
• Touch Panel Lockout
• Momentary or Latching Switch Operation
• Ignition or Constant Battery Power Modes
• Flash & Strobe Functions with User-Selectable Patterns
• Automatic Startup Activation
• Safety Lockout for Individual Switches
• Programmable Time Delay Off
• Low Voltage Disconnect Protection
• Sleep Mode for Minimal Battery Drain
• Assign Up to Four Outputs to a Single Switch
• Three External Trigger Inputs (Active High or Active Low)
• Daisy Chain Up to Three Switch Panels to One Power Module

Perfect For Controlling

• LED Light Bars
• Pod Lights
• Rock Lights
• Whip Lights
• Chase Lights
• Reverse Lights
• Air Compressors
• Cooling Fans
• Winches
• GPS Systems
• Communications Radios
• Stereo Systems
• Water Pumps
• Interior Lighting
• Dome Lights
• Dust Lights
• Auxiliary Electrical Accessories
